- Size: 85
- Place of Origin: China
- Brand Name: WANSHIDA
- Model Number: 50T Mining Tipper Truck
- Weight: 75000.000 kg
Company Introduction |
SINOTRUK GROUP is the first and biggest heavy duty truck manufacturer in China,who produce and sell all kinds of HOWO trucks, HOWO A7 trucks, HOHAN trucks and Golden Prince trucks. Relying on the CNHTC advantages in talent, technology and management, the company vigorously implements brand strategy and well meets customer demands driven by scientific technology, powered by innovation and based on high efficiency and high quality.
Our Advantages |
1. Small order can be accepted.
2. 1 year quality guarantee term.
3. CCC, ISO9001 certifications.
4. Be designed according to your requirement.
5. More than twenty years heavy TRUCK manufacture experience.
Hot Sale Products |
√ Dump/Tipper Truck: 4x2 Tipper/Dump truck,6x4 Tipper/Dump truck,8x4 Tipper truck.
√ Semi Trailer: Low bed semi trailer, container flatbed transport semi trailer, cargo trailer,dump semi trailer,tanker semi trailer.
√ Tractor Truck: 4x2 Tractor Truck,6x4 Tractor Truck,8x4 Tractor Truck.
√ Cargo Truck: 4x2 Cargo Truck ,6x4 Cargo Truck ,8x4 Cargo Truck.
√ Concrete Mixer Truck: SINOTRUK HOWO 4x2 Concrete Mixer Truck ,SINOTRUK HOWO 6x4 Concrete Mixer Truck,SINOTRUK HOWO 8x4 Concrete Mixer Truck,6m3 Concrete mixer truck,8m3 concrete mixer truck,10m3 concrete mixer truck,12m3 concrete mixer truck.
√ Water Tanker Truck: 4x2 Water Tanker Truck ,6x4 Water Tanker Truck,8x4 Water Tanker Truck
√ Fuel Oil Tanker Truck: 4x2 Fuel Oil Tanker Truck ,6x4 Fuel Oil Tanker Truck ,8x4 Tanker Truck

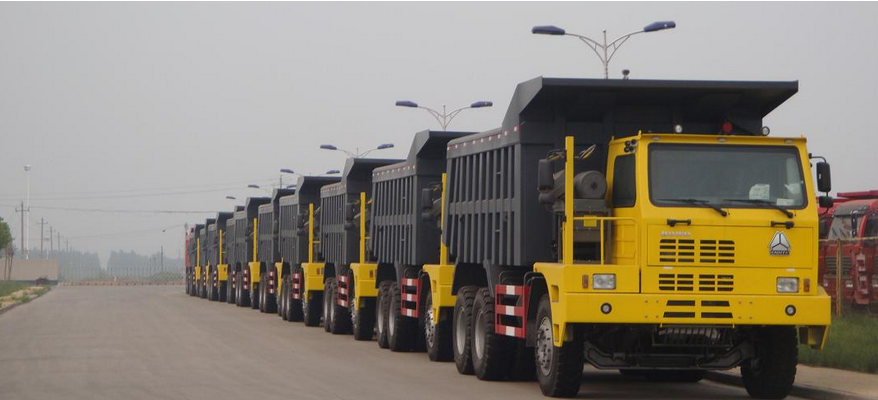

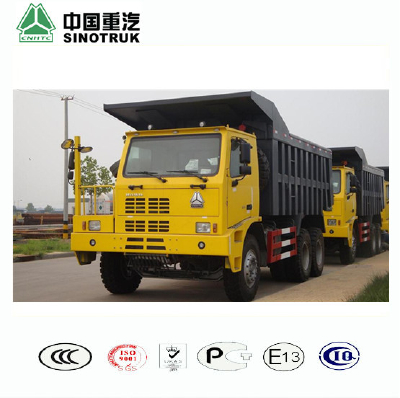

SINOTRUK HOWO 50T Mining Dump Truck Off-Road Mining Dumper
Model | ZZ5504N3640AJ | |
Dimension | 8060x3000x3425mm | |
Dimension of box | 5400x2800x1500mm(rectangular carrier) | |
Wheel base | 3600mm 1400mm | |
Front/rear overhang | 1500/1560mm | |
Front/rear track | 2400/2200mm | |
Min. Ground clearance | 305mm | |
Dead weight | 15560kg | |
G.V.W | 50000kg | |
Axle loading capacity | 9650/40350kg | |
Cabin | HOVA CABIN, Dual hydraulic locks,hydraulically 52°tilting to the front | |
Engine: | Model | WD 615.69 |
Power | 247kw/2200rpm | |
Max. torque | 1350Nm/1100~1600rpm | |
Air intake | Three air filtering, whirlwind pre-filtering, oil bath and air filtering | |
Clutch | FG420J Spiral spring | |
Transmission: | HW18709 | |
12.68 8.46 6.26 4.64 3.38 2.50 1.85 1.37 1.00 R11.62 | ||
Drive axle | Strengthened wide steel two-grade reducing and double tire axle | |
Front axle | Strengthened wide welded box stiff front shaft | |
Tire | 14.00-20-20PR or 14.00R20 | |
Service brake | Dual circle brake | |
Park brake | Spring energy air cut brake on front shaft and rear axle | |
Electric system | Single line 24V negative grounded | |
Fuel tanker | 400L | |
How to get the Competitive Price? |
Nicole Zhang | |
Tel | 86 531 81958191 |
Mobile/Whatsapp/Wechat | 86 18615583373 |
Skype | moto911209 |
546055832 | |
- Size: 85
- Place of Origin: China
- Brand Name: WANSHIDA
- Model Number: 50T Mining Tipper Truck
- Weight: 75000.000 kg
SINOTRUK HOWO 50T Mining Dump Truck Off-Road Mining Dumper
Model | ZZ5504N3640AJ | |
Dimension | 8060x3000x3425mm | |
Dimension of box | 5400x2800x1500mm(rectangular carrier) | |
Wheel base | 3600mm 1400mm | |
Front/rear overhang | 1500/1560mm | |
Front/rear track | 2400/2200mm | |
Min. Ground clearance | 305mm | |
Dead weight | 15560kg | |
G.V.W | 50000kg | |
Axle loading capacity | 9650/40350kg | |
Cabin | HOVA CABIN, Dual hydraulic locks,hydraulically 52°tilting to the front | |
Engine: | Model | WD 615.69 |
Power | 247kw/2200rpm | |
Max. torque | 1350Nm/1100~1600rpm | |
Air intake | Three air filtering, whirlwind pre-filtering, oil bath and air filtering | |
Clutch | FG420J Spiral spring | |
Transmission: | HW18709 | |
12.68 8.46 6.26 4.64 3.38 2.50 1.85 1.37 1.00 R11.62 | ||
Drive axle | Strengthened wide steel two-grade reducing and double tire axle | |
Front axle | Strengthened wide welded box stiff front shaft | |
Tire | 14.00-20-20PR or 14.00R20 | |
Service brake | Dual circle brake | |
Park brake | Spring energy air cut brake on front shaft and rear axle | |
Electric system | Single line 24V negative grounded | |
Fuel tanker | 400L | |
