- Size: 70cbm
- Place of Origin: China
- Brand Name: SINOTRUK
- Model Number: SINOTRUK HOWO ZZ3257N3647
- Weight: 12000.000 kg
Our Advantages |
1. Small order can be accepted.
2. 1 year quality guarantee term.
3. CCC, ISO9001 certifications.
4. Be designed according to your requirement.
5. More than ten years dump truck manufacture experience.
Hot Sale Products
√ Semi Trailer: Low bed semi trailer, container transport semi trailer, cargo trailer,dump semi trailer,
tanker semi trailer, special semi trailer.
√ Dump/Tipper Truck: 4x2 Tipper/Dump truck,6x4 Tipper/Dump truck,8x4 Tipper truck.
√ Tractor Truck : 4x2 Tractor Truck,6x4 Tractor Truck,8x4 Tractor Truck.
√ Concrete Mixer Truck: 4x2 Concrete Mixer Truck ,6x4 Concrete Mixer Truck,8x4 Mixer
√ Water Tanker Truck: 4x2 Water Tanker Truck ,6x4 Water Tanker Truck,8x4 Water Tanker Truck
√ Fuel Oil Tanker Truck: 4x2 Fuel Oil Tanker Truck ,6x4 Fuel Oil Tanker Truck ,8x4 Tanker Truck

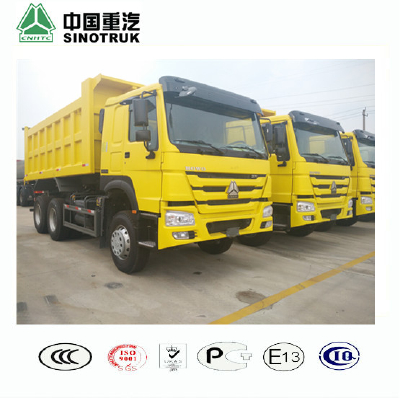

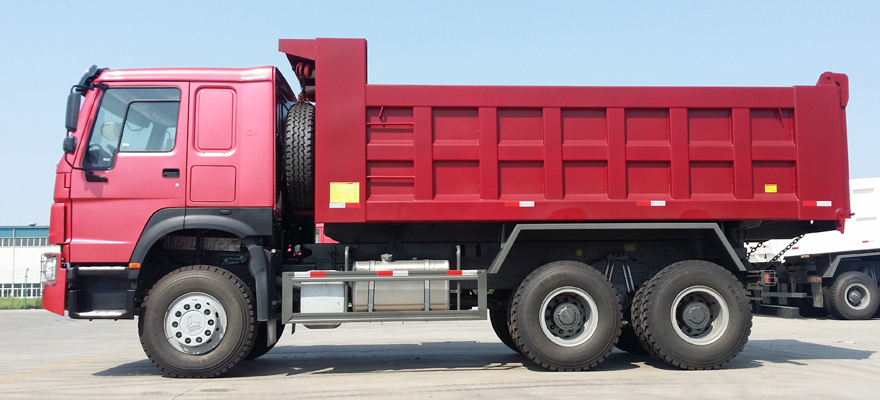

SINOTRUK HOWO 336hp Dump Truck/Tipper Truck 10 Wheel
General information | |||
Driving Type: | 6X4 | Model No.. | ZZ3257N3847A |
Whole Dimension: | 8545× 2496 × 3370mm | Wheel base: | 3825+1350mm |
Loading weight: | 30 ton | Max speed: | 75km/h |
Engine | |||
Engine No: | WD615.47 | Cylinder No | 6 |
Fuel type: | Diesel | Emission: | 9.726L |
Emission standard: | Euro II | Horse power: | 371hp |
Max output rate: | 273kw | Torque: | 1500n.m |
Max twist speed: | 1100-1600r/min | Rated rotate speed | 2200rpm |
Gearbox | |||
Gearbox No: | HW19710 | Transmission Type: | Manual |
Forward: | 10 speed | Reverse: | 2 speed |
Dump truck Chassis and tire | |||
Front axle: | HF9 | Front axle loading: | 9000kg |
Rear axle: | HC16 | Rear axle loading: | 16000kg |
Tires | 12.00-20/12.00R20 | Tire quantity: | 11, with spare tire |
Dump box | |||
Box dimension: | 5800x2300x1500mm | Hydraulic System: | HYVA front lift |
Floor thickness | 8mm /10mm/12mm | Side thickness: | 4mm /6mm/8mm |
