- Size: 64CBM
- Place of Origin: China
- Brand Name: WANSHIDA
- Model Number: CIMC semi trailer
- Weight: 7000.000 kg
Specification for Low Bed Semi Trailer:
| Model number | CIMC |
| Total size | 13,000x3,000x1,650 mm |
| Working size | 9,000x3,000x800 mm |
| Curb weight | 7,000 kg |
| Loading weight | 50,000-60,000 kg |
| Departure angle | 16 |
| Axle brand | FUWA Brand axle |
| Axle number | Three |
| Wheelbase | 8,580+1,310+1,310 mm |
| Suspension system | leaf spring suspension |
| Steel spring | 10/10/10 leaf spring suspension |
| Main beam | Beam height 500 mm Upper plate 16 mm Down plate 18 mm middle plate 10 mm |
| Platform plate | 3 mm diamond plate |
| Tire type and quantity | Radial tire 11.00R20 x 12 units |
| Ladder | with ladder |
| Tration pin | 2" or 3.5" |
| Landing gear | Standard 28T |
| Brake system | Dual line braking system |
| Brake air chamber | Six big dual chamber |
| Spare wheel bracket | 2 pieces |
| Painting | One coat anti-rust prime, two coats final paint |
| Light | Tail lamp with turn singal, brake light& reflector, side lamp, etc |

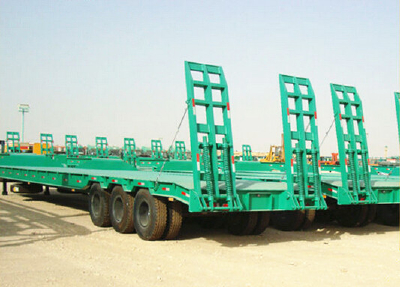

Semi Trailer Details Pictures:
Our Main Products:
√ Semi Trailer:Low bed semi trailer, container transport semi trailer, cargo trailer,dumpsemi trailer,tank semi trailer, special semi trailer.
√ Dump/Tipper Truck:4x2 Tipper/Dump truck,6x4 Tipper/Dump truck,8x4 Tipper truck.
√ Tractor Truck : 4x2 Tractor Truck,6x4 Tractor Truck,8x4 Tractor Truck.
√ Cargo Truck:4x2 Cargo Truck ,6x4 Cargo Truck ,8x4 Cargo Truck.
√ Concrete Mixer Truck: 4x2 Concrete Mixer Truck ,6x4 Concrete Mixer Truck,8x4 Mixer
√ Water Tank Truck:4x2 Concrete Mixer Truck ,6x4 Concrete Mixer Truck,8x4 Mixer
√ Fuel Oil Tank T ruck: 4x2 Fuel Oil Tank Truck ,6x4 Fuel Oil Tank Truck ,8x4 Tank Truck
