- Size: 65 cbm
- Place of Origin: Liangshan,China
- Brand Name:
- Model Number: CIMC 3 Axle Cargo Semi Trailer With Side Wall For Sale
- Weight: 7000.000 kg
Company Introduction |
During over 25 years developing,Shandong Wanshida has become a famous enterprise among China special vehicle manufacturers. After acquired by CIMC Vehicle Group in 2011, Shandong Wanshida reached to a higher level on truck trailer.Now, our vehicles have exported to over 30 countries all over the world. Such as Russia, Vietnam, Philippines, Thailand, Congo, Angola, Senegal, Mali, Kenya, Cameroon, Algeria, Sudan, South- Africa, Mozambique, Zimbabwe, Brazil, Bolivia,and other countries
Our Advantages |
1. Small order can be accepted.
2. 1 year quality guarantee term.
3. CCC, ISO9001 certifications.
4. Be designed according to your requirement.
5. More than ten years SEMI TRAILER manufacture experience.
Hot Sale Products |
√ Semi Trailer: Low bed semi trailer, container flatbed transport semi trailer, cargo trailer,dump
semi trailer,tanker semi trailer, special semi trailer.
√ Dump/Tipper Truck: 4x2 Tipper/Dump truck,6x4 Tipper/Dump truck,8x4 Tipper truck.
√ Tractor Truck: 4x2 Tractor Truck,6x4 Tractor Truck,8x4 Tractor Truck.
√ Cargo Truck: 4x2 Cargo Truck ,6x4 Cargo Truck ,8x4 Cargo Truck.
√ Concrete Mixer Truck: 4x2 Concrete Mixer Truck ,6x4 Concrete Mixer Truck,8x4 Mixer
√ Water Tanker Truck: 4x2 Water Tanker Truck ,6x4 Water Tanker Truck,8x4 Water Tanker Truck
√ Fuel Oil Tanker Truck: 4x2 Fuel Oil Tanker Truck ,6x4 Fuel Oil Tanker Truck ,8x4 Tanker Truck

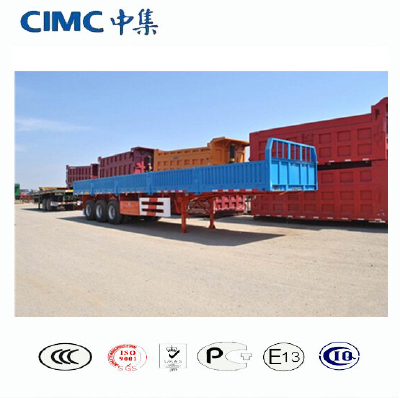

CIMC 3 Axle Cargo Semi Trailer With Side Wall For Sale
Trailer Model | CIMC 3 Axle Cargo Semi Trailer With Side Wall For Sale |
Overall Dimension(Lx W x H)(mm) | 12560*2500*2100 |
Inner Dimension(Lx W x H)(mm) | 12500*2290*600 |
Thickness(mm) | Bottom: 3mm, Side: 2mm |
Loading Weight( KG) | 40000 |
Axle Brand | FUWA 13TON Axle |
Axle Number | Three |
Wheelbase(mm) | 6260 1310 1310 |
Suspension system | Common Mechanical suspension |
Steel Spring | 10/10/10 leaf spring suspension |
The material of Main beam | The height of the beam is 500 mm, upper plate is14mm, down plate is 16mm,middle plate is 8mm. |
Platform plate | 3mm Diamond plate |
Tire Type and quantity | 12R22.5 12units |
Traction Pin | 50mm or 90mm |
Spare Tire Carrier | 2 picecs |
Landing Gear | Standard 28ton |
Brake system | Dual Line braking system ,none ABS. |
Brake air chamber | Six double chamber |
